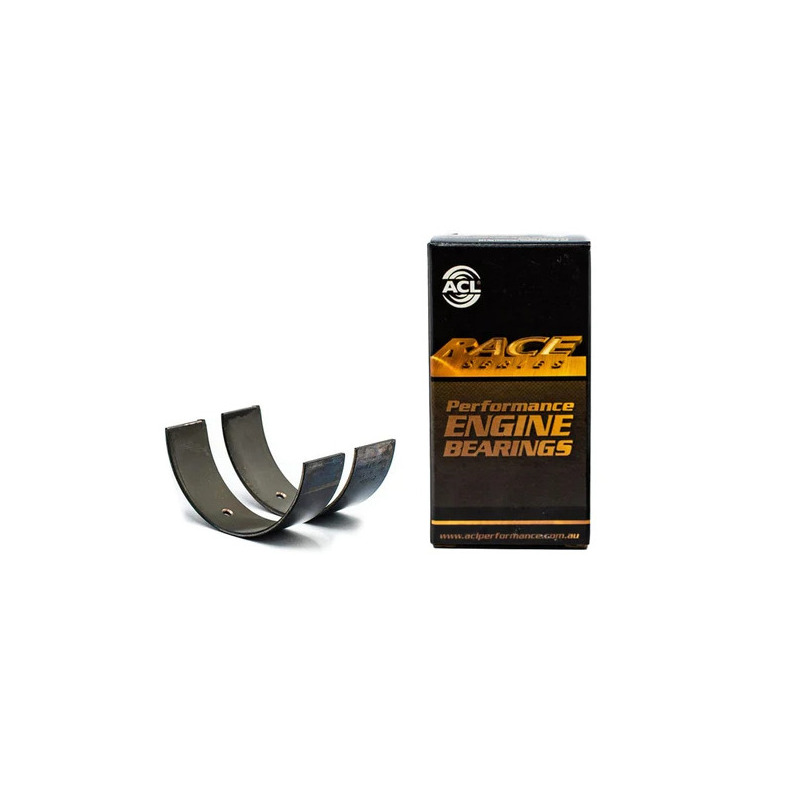

ACL Bearings Connecting Rod Bearing Set 8B743HD-STD; Race Series Performance Standard for Chevy 396-454

View the full image
View the full image
View the full image

Price:	$112.56

Brand:

ACL Bearings

SKU:

ACL8B743HD-STD

UPC:

9315726401187

Box Dimensions:

7.4 × 3 × 1.1 in

Box Weight:

1 lb

This item ships free with qualifying orders of $150 or more

(Valid on orders shipped within the contiguous United States. Excludes any oversized charges. See Shipping Policy page for more details)

Horizontal Tabs

Description & Specs

Series:

Race Series

Make:

Chevy

Engine:

396-454

Construction:

Tri-Metal

Bearing Undersize:

Standard

Usage:

Performance

Backing Layer Material:

Steel

Bearing Lining or Intermediate Material:

Copper, Lead, Tin

Overlay Material:

Lead, Tin, Copper

Coated:

Chamfered:

Yes

Bearing Width:

0.9020 in.

Standard Bearing Thickness (Without O/S):

0.0619 in.

Standard Crank Pin Diameter (Without O/S):

2.1990 in.

Standard Housing Diameter (Without O/S):

2.3247 in.

Includes Dowel Pin Hole:

Yes

Quantity:

Sold As Set (8/pkg)
