Derale Cooling Fan 16924; High Output Single RAD 2,000 cfm Electric 12.000 in. Skewed

View the full image

Price:	$204.49

Brand:

Derale

SKU:

DER16924

UPC:

083277169243

Box Dimensions:

19.3 × 17.39 × 4.8 in

Box Weight:

7 lb

This item ships free with qualifying orders of $150 or more

(Valid on orders shipped within the contiguous United States. Excludes any oversized charges. See Shipping Policy page for more details)

Horizontal Tabs

Description & Specs

Series:

High Output Single RAD

Fan Type:

Electric

Fan Diameter:

12.000 in.

Maximum CFM:

2,000 cfm

Blade Type:

Skewed

Fan Directon:

Pusher or Puller

Blade Finish:

Black

Blade Material:

Plastic

Amp Draw:

24.8 Amps

Shroud Height:

13.125 in.

Shroud Width:

13.125 in.

Shroud Thickness:

2.375 in.

Shroud Material:

Plastic

Shroud Color:

Black

Includes Mounting Hardware:

Yes

Includes Wiring Harness:

Assembly Depth:

3.500 in.

Includes Air Conditioning Relay:

Quantity:

Sold As Kit

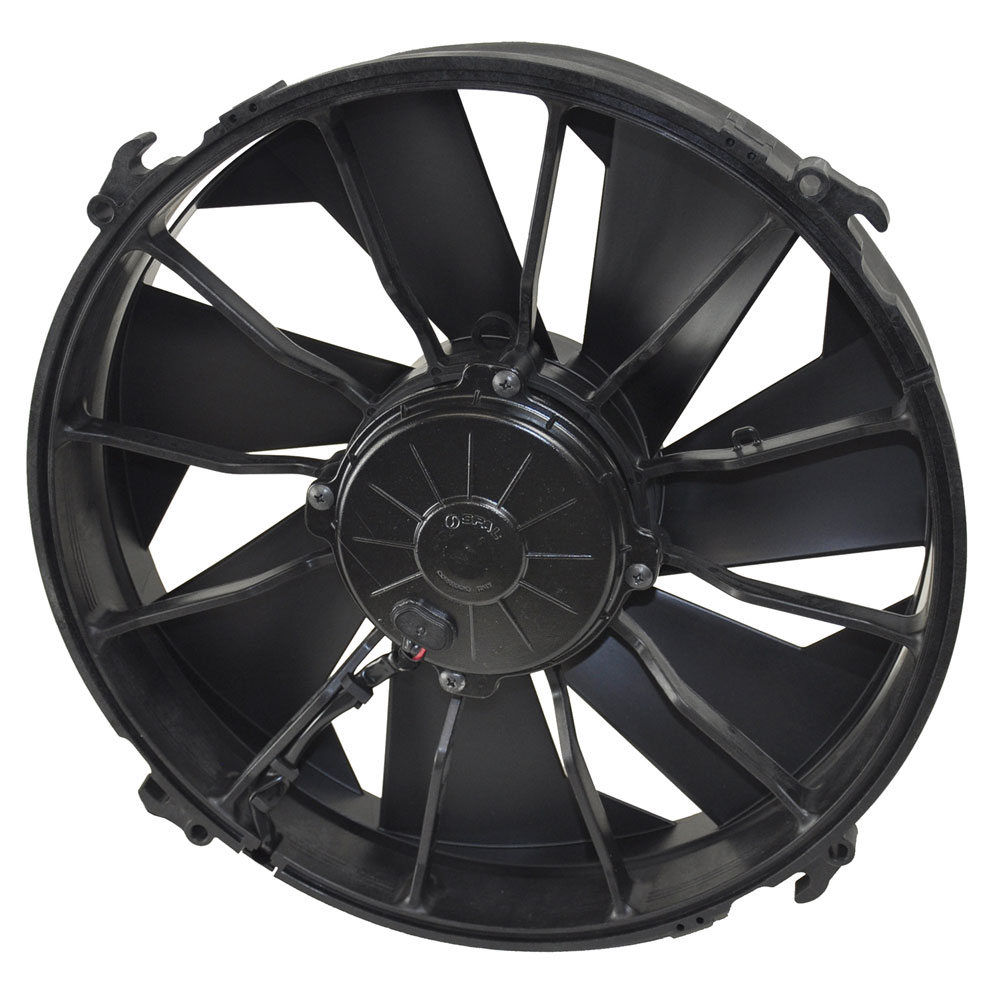

12" High Output Single RAD Pusher/Puller Fan with Standard Mount Kit

This 12" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 300 watt motor driving 7 skewed blades, it can be used as a pusher with the supplied hardware kit. Fan can also be used as puller by combining with a custom built shroud. Moves 2000 CFM while drawing up to 24.8 amps.
