Equus Gauge Set 7500; 7000 Series Mechanical, Electric Speedometer, Oil Pressure, Water Temperature, Fuel Level, Voltmeter Black

View the full image

Price:	$189.44

Brand:

Equus

SKU:

EQU7500

Box Dimensions:

17.5 × 8.8 × 5 in

Box Weight:

4 lb

This item ships free with qualifying orders of $150 or more

(Valid on orders shipped within the contiguous United States. Excludes any oversized charges. See Shipping Policy page for more details)

Horizontal Tabs

Description & Specs

Series:

7000 Series

Bezel Color:

Chrome

Gauge Face Color:

Black

Gauge Types:

Speedometer, Oil Pressure, Water Temperature, Fuel Level, Voltmeter

Gauge Ranges:

0-120 MPH, 0-100psi, 130-280 deg, E-F (0-90ohms), 8-18V

Gauge Sizes:

3 3/8", 2"

Gauge Sweep:

Full, Short

Gauge Number Color:

White

Pointer Color:

White

Liquid Filled:

Sending Unit Type(s):

Mechanical, Electric

Meter Movement Mechanism(s):

Mechanical, Air-Core

Programmable:

Includes Mounting Components:

Backlit:

Yes

Quantity:

Sold As Set

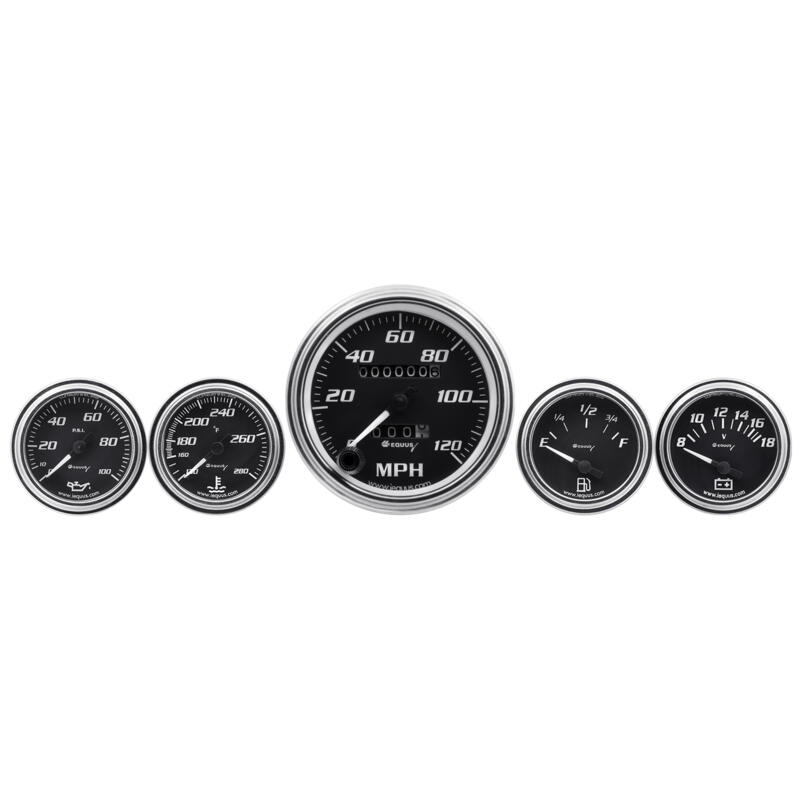

Set includes 3 3/8 in. 120 MPH mechanical speedometer, 2 in. 100 PSI mechanical oil pressure, 2 in. 280 degree F mechanical water temperature, 2 in. 18V electric voltmeter, and 2 in. electric 0-90 ohm fuel level gauges
Back-Lit illumination for night use. Includes red and green bulb covers.
Includes: 3/8 in. & 1/2 in. NPT brass adapter fittings for temperature gauge, 6 ft. nylon tubing with 1/8 compression fittings and 1/8 in.
One million mile odometer with one thousand mile resettable trip meter.
Configured for 1:1 Drive Ratio (1,000 cable RPM at 60 MPH)
5/8 x 18 male thread attachment point for 0.104" square drive speedometer cables. Additional adapters sold separately.
Matching tachometer is available in Equus model 7068
Includes installation instructions in English, French, and Spanish.
Includes: NPT female to 1/4 in. NPT male brass adapter for pressure gauge, 1/4 female spade terminals for voltmeter, and universal 5 bolt fuel level sensor which is adjustable for 5-24 inches of tank depth.

This attractive, durable, and affordable Equus 7000 Classic series five piece mechanical gauge set features elegantly styled black dial, chrome bezel, backlit instruments for monitoring speed, oil pressure, water temperature, voltage and fuel level. Installation hardware included. Additional adapters sold separately.
