ICT Billet A/C Compressor Bracket 551585X-3; for Chevy Trucks LS

Price:	$241.99

Brand:

ICT Billet

SKU:

ICT551585X-3

UPC:

797822585982

Box Dimensions:

10.3 × 10.3 × 4.8 in

Box Weight:

8 lb

This item ships free with qualifying orders of $150 or more

(Valid on orders shipped within the contiguous United States. Excludes any oversized charges. See Shipping Policy page for more details)

Horizontal Tabs

Description & Specs

Make:

Chevy

Model:

Trucks

Engine:

Bracket Finish:

Natural

Bracket Material:

Billet Aluminum

Includes Hardware:

Yes

Fits A/C Compressor(s):

Sanden R4, AC Delco, or ICT # ACC501

Notes:

includes: bracket, belt tensioner, and mounting hardware

Quantity:

Sold As Kit

LS Truck R4 A/C Compressor Heavy Duty Bracket Kit
Requires: Truck/SUV (or LS3/L99 Camaro) crank pulley (12634105)
Can be used with AC Delco compressor part # 1520285 (has 4.25" pulley)
Made in Wichita, KS from aerospace grade, USA billet aluminum
Not compatible with Gen 4 truck water pump (19208815)(upper neck will hit bracket)
Belt length with 105 amp alternator and OEM truck accessory bracket: 1105K6 (110.5 inch).
Belt length with 145/160 amp alternator and OEM truck accessory bracket: 1115K6 (111.5 inch).
Belt length with 105 amp alternator and ICT 551521-3: 970K6 (97.0 inch), w/ICT 551669-3:980K6 (98.0")
Belt length with 105 amp alternator and ICT 551669-3: 980K6 (98.0 inch).
This does NOT use the factory style LS vehicle a/c compressors (25891791)small

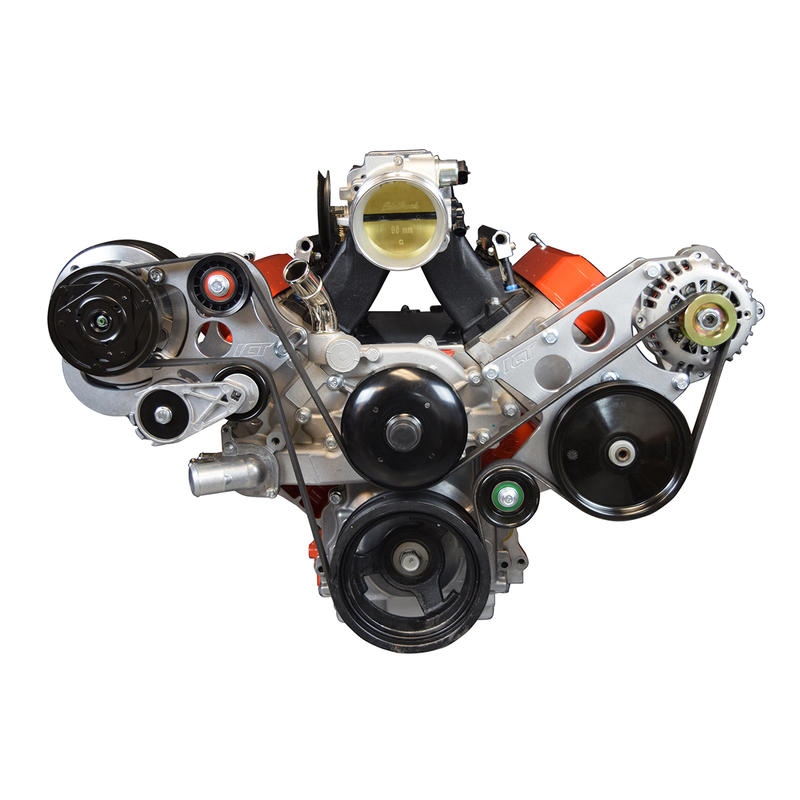

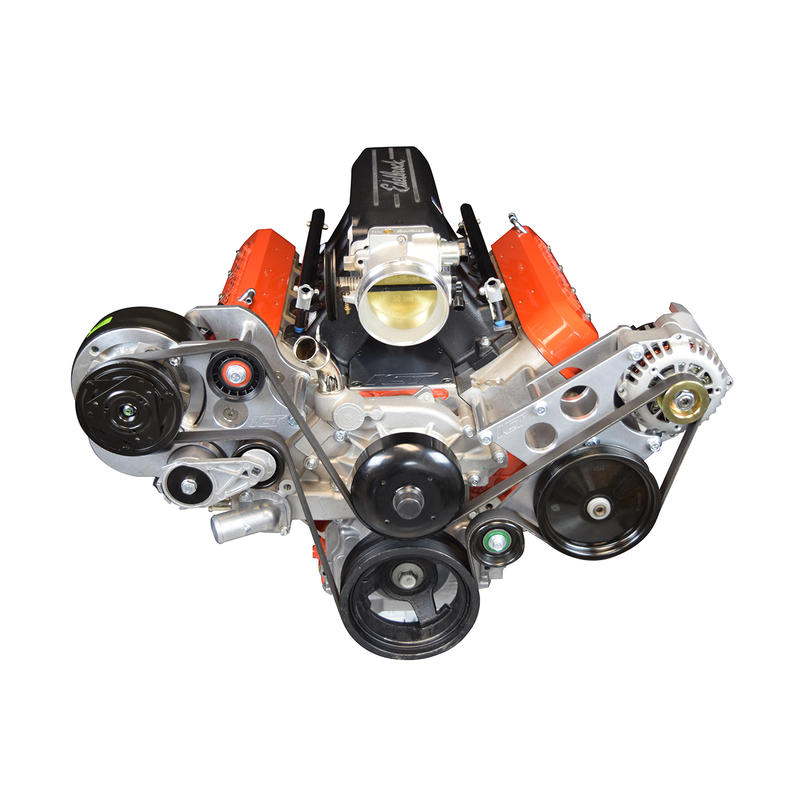

Shown with ICT Billet Alternator and Power Steering kit #551519-3 (not included)
If using a Camaro R4 A/C compressor (has larger 5" diameter pulley) then bolt heads will need clearanced at the compressor pulley.
Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 551479
