Moroso Oil Pan 21811; Wet Sump for 1986-Up Chevy 262-400

Price:	$468.99

Brand:

Moroso

SKU:

MOR21811

UPC:

084663218118

Box Dimensions:

22.37 × 15.26 × 8.37 in

Box Weight:

18 lb

This item ships free with qualifying orders of $150 or more

(Valid on orders shipped within the contiguous United States. Excludes any oversized charges. See Shipping Policy page for more details)

Horizontal Tabs

Description & Specs

Year:

1986-Up

Make:

Chevy

Engine:

262-400

Pan Style:

Wet Sump

Dip Stick Location:

Passenger's Side

Depth:

7.000 in.

Baffled:

Yes

Quantity:

Sold As Each

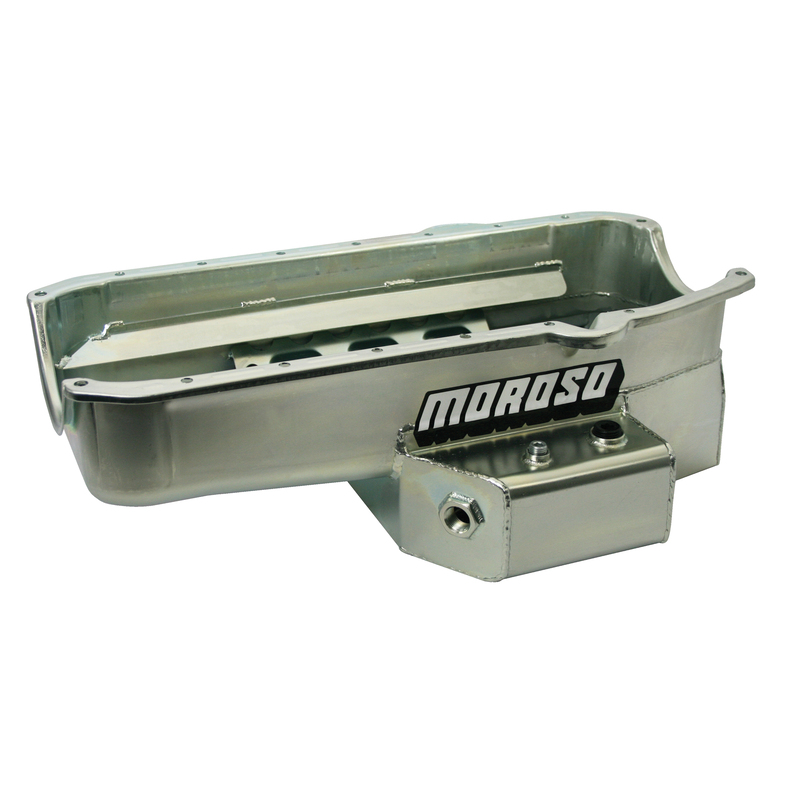

Steel, Wet Sump, 7 Quart Capacity, 7" deep Sump, Road Race Baffled
Engine Application: SBC ‘86& Up engine blocks with 1 piece seal/passenger side dipstick
Fits: C-3 & C-4 Corvettes, Kit Cars and other low ground clearance applications
Clears 4.125" stroke with most steel rods
Fits 4 bolt Dart, GM and Merlin main caps
5 trap door baffles for oil control in Road Racing, also an excellent Drag Race pan

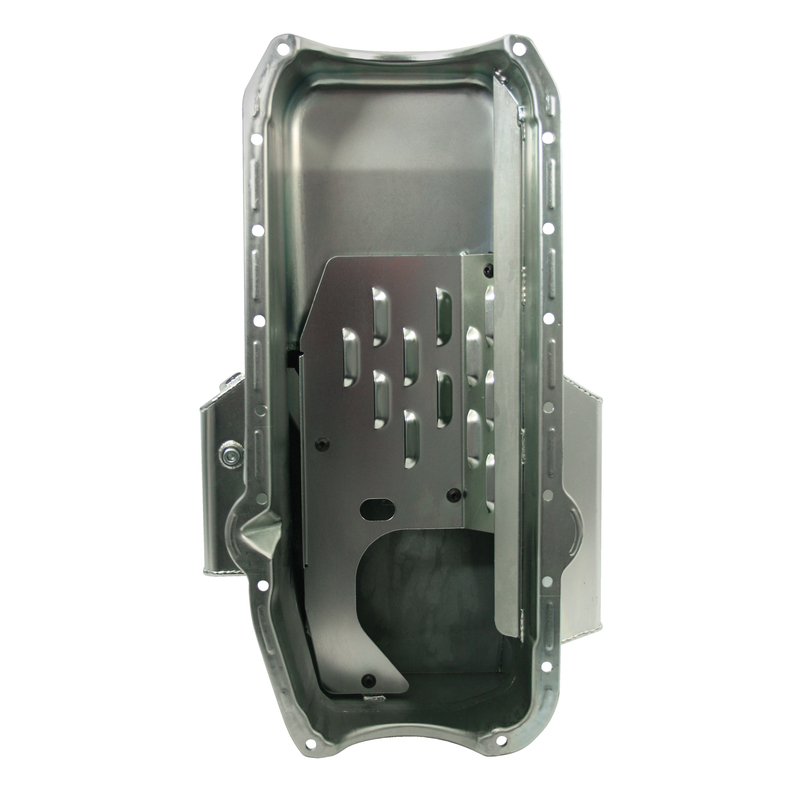

Has a built-in crank scraper, removable louvered windage tray for horsepower
Rear Sump is 7" deep, 13-3/4" wide and 12" long
20mm fitting for oil level sensor, optional 20mm plug No. 22738 available for use when the factory low warning sensor is not going to be utilized
Use stock dipstick; also has a 1/4" NPT fitting for Moroso Universal Dipsticks Nos. 25970, 25971 & 25973
Steel with a clear zinc finish
Compatible with most starter/flywheel combinations
Fits: C-3 & C-4 Corvettes, Kit Cars and other low ground clearance applications
Clears 4.125" stroke with most steel rods
Fits 4 bolt Dart, GM and Merlin main caps
5 trap door baffles for oil control in Road Racing, also an excellent Drag Race pan
Has a built-in crank scraper, removable louvered windage tray for horsepower
Rear Sump is 7" deep, 13-3⁄4" wide and 12" long
Includes 20mm fitting for oil level sensor, optional 20mm plug No. 22738 available for use when the factory low warning sensor is not going to be utilized
Use stock dipstick; also has a 1⁄4" NPT fitting for Moroso Universal Dipsticks No. 25970, 25971 & 25973
Steel with a clear zinc finish
Compatible with most starter/flywheel combinations

Oil Pan, SBC, 1-Pc Seal, 7" Deep, Baffled for Road Race, makes an excellent Drag Race Oil Pan for C-4 Corvette and other low ground clearance appl. Works up to a 4.125" stroke w/steel rods, 20mm oil warning sender.
